Failure Mode Effect Analysis Examples and Explanations

We’ve all heard stories about high-profile companies having to issue product recalls due to poorly designed processes or goods. These types of issues can be reputation-ruining and really affect the bottom line. What can be done to prevent these problems in your organization?

FMEA is a useful and necessary methodology in manufacturing. We’ll discuss what FMEA means, what the different types and effects of FMEA are, and how you can implement this process in your company.

FMEA Meaning

FMEA stands for Failure Mode and Effects Analysis, and the name tells a lot about the process. FMEA is a structured method that aims to identify potential failures and their corresponding outcomes.

The FMEA process is considered a bottom-up approach — the analysis starts with specific data that builds up to form a more general plan of action. In this case, each component of the observed system is thoroughly examined for likely breakdown causes.

For every identified breakdown scenario, corresponding effects should then be pointed out. This allows the organization to have an extensive map of failure modes and effects, organized according to their level of impact on the business.

Developing an FMEA process equips organizations with a strategy to identify potential breakdowns before they even occur. This process of risk assessment can streamline the efforts of maintenance teams toward efficiently increasing reliability.

3 Types of FMEA Analysis

#1: Design FMEA (DFMEA)

Design FMEA relates to the way that a system, product, or service was conceptualized. As the name suggests, DFMEA focuses on the design aspect of a developmental process. It is primarily beneficial in testing out new product ideas before introducing them to real-life scenarios.

#2: Process FMEA (PFMEA)

The nature of PFMEA differs slightly as it looks into current processes and procedures that an organization is already performing. PFMEA would typically address potential failures that can have significant impacts on usual operations.

Some examples of business impacts are process stalls, human errors, and environmental and safety hazards. Because of its nature, PFMEA can be performed more effectively when historical data is available.

#3: Functional FMEA (FFMEA)

Yet another way to reduce the risk of failure, FFMEA identifies and then prioritizes potential functional failure modes as it focuses on avoiding possible failures before corrective actions even need to be taken.

How Does FMEA Work?

FMEA works by collecting as much information from the production floor as possible. Maintenance and reliability teams, being closest to the equipment and processes, are valuable assets to provide a collection of ideas on how failures can potentially occur. The effects of each potential failure are then assessed. Finally, the severity of each of the effects is then rated and evaluated to form a weighted scale.

By assigning weights, FMEA effectively becomes an objective decision criterion to which the organization’s functions can align. A Risk Priority Number (RPN) refers to the risk value that each outcome amounts to. The RPN becomes the basis of whether or not teams should take action to address a potential failure. It is important for the relevant teams to have the same level of understanding of the RPN and their corresponding actions.

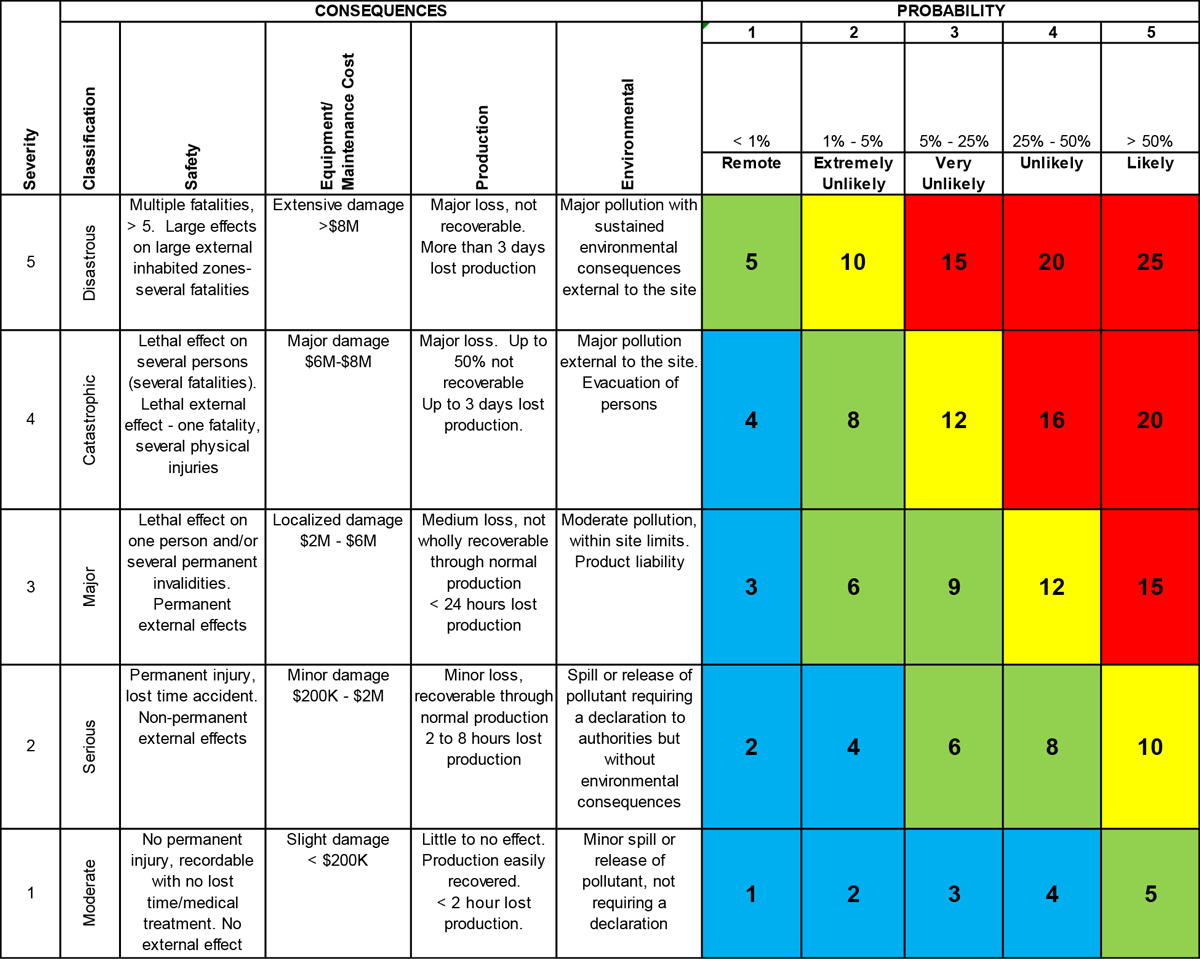

An FMEA example matrix. Image courtesy of ReliabilityWeb.

What Are Failure Modes in FMEA?

Failure modes describe the specific ways by which failures can occur. Different forms of FMEA will focus on specific areas. For example, the object that is assumed to fail can be a component of an equipment, the equipment itself, a subsystem, a system, or even a certain process.

A set of failure modes can tell you a lot about the functional impact of a failure. In such cases, the levels of service that failure events allow are categorized into their respective groups. For example, to establish the level of functionality after a failure, a set of failure modes can resemble the following categories:

Full function failure
Partial or degraded function failure
Intermittent function failure
Over function failure
Unintended function failure

When performing FMEA for more specific applications like physical equipment, failure modes tend to become more specific. For example, take the case of specialized equipment, such as a centrifugal pump. Failure modes for a pump can include hydraulic failure, mechanical failure, corrosion, or human intervention. As you can imagine, the list goes on as more types of equipment are analyzed.

What Are Effects in FMEA?

Effects describe the consequences or repercussions of an identified failure event. These effects can reflect a failure’s impact on safety, productivity, and overall reliability. To get the whole picture of the extent of a failure, it would help to think of an FMEA effect on at least three levels:

Local Effect

Local effects are the consequences of failure to the item being observed or items immediately adjacent to it. When looking at physical assets, for example, local effects might consider the consequences of having a faulty component such as a pump used in water circulation.

Next Higher Level Effect

As the name suggests, the next higher level effects would consider the impacts of failure on the larger subsystem that it affects. Following our equipment example, the next higher level effect of having a broken pump could describe consequences to the larger cooling system it belongs to.

End Effect

The end effect is the highest-level effect that considers repercussions to the whole system, facility, or organization. Again, continuing from our example, the end effect of a compromised cooling system might be delayed production schedules or worse, a complete standstill of operations.

With the failure modes and effects mapped out, the risk of each scenario occurring could be assessed more systematically. The steps to take given the failure modes and effects would then become more apparent after evaluating the other components of the FMEA process.

What Are the 5 Steps of the FMEA Process?

With long lists of failure modes and corresponding effects, the next challenge is building strategies to handle each scenario. An objective approach to quantifying the seriousness of failure events would be to identify the components of the FMEA process.

The 5 steps of the FMEA process include:

Identifying potential failures and effects
Determining severity
Gauging the probability of failure
Assessing detectability
Calculating the Risk Priority Number (RPN)

Step 1: Identifying Potential Failures and Effects

Because failure modes in one component can lead to failure in others, it’s important to first analyze functional requirements and their effects to identify all potential areas of failure. You’ll need to list all failure modes for each function and consider their ultimate effects.

Examples of potential failures and effects may include user injury, excessive noise, abnormal shutdown, or overheating.

Step 2: Determining Severity

Another factor considered in the calculation of risk priority is the severity of an identified failure event. Severity attempts to quantify the seriousness of an effect or series of effects, given a failure mode.

Because of the subjective nature of evaluating severity, this criterion is usually set by the company. One of the common ways to approximate the seriousness of failure effects is to calculate the monetary implications caused by a breakdown. Other factors such as safety hazards and nonconformance with government regulations are also factors that influence severity.

Step 3: Gauging the Probability of Failure

Think of the probability of failure as the likelihood that a component, equipment, or process would fail. A higher rating would mean that failure is almost certain. In assessing the probability of failure, it is important to consider the entirety of the lifetime of an asset. The seasonal fluctuations of failure events also need to be considered where applicable.

Accurately identifying the rating for this criterion could really use a combination of worker experience and robust historical data. Maximizing the use of a CMMS to collect historical data can lead the maintenance teams to data-driven assessments.

On a scale of 1 to 10, the following numerical ratings typically correspond to the following descriptions of the likelihood of failure:

1 – Extremely unlikely or no chance of experiencing failure or breakdowns
2 to 4 – Minimal chance of failure can occur as experience would show
5 to 7 – An occasional chance of failure can occur
8 to 9 – A high chance of failure is expected to occur
10 – An occurrence of failure is inevitable within the time frame observed

Step 4: Assessing Detectability

Detectability answers the question: “Will there be a warning to allow the failure event to be avoided?” In this component of FMEA, easily detectable failure events are given a low rating, while events with no chance of detection are given the highest rating.

For example, with highly reliable sensors in place, a faulty HVAC system might have a relatively low detectability rating. Components with absolutely no way of detection should be given a high rating to reflect a potentially bigger problem.

Step 5: Calculating the Risk Priority Number (RPN)

The final value after evaluating this set of criteria would give you a Risk Priority Number (RPN). You can think of the RPN as a score that gives you an idea of what needs your attention more urgently.

The formula to determine RPN is:

Severity * Occurrence * Detection (or RPN = S x O x D)

Your RPN should be calculated for the entire process and documented in the FMEA. Components with the highest RPNs should get top priority for corrective measures, including:

Design changes
New inspections, tests, or procedures
Modified limits
Different components
Etc.

Once these corrective measures are implemented, RPN should improve. The number is recalculated and once again documented in the FMEA.

How To Start the FMEA Process

As with most company-wide initiatives, introducing a process such as FMEA is usually first approved by higher management. While suggestions and proactive measures may start from the actual workers, starting the FMEA process would require collective action that involves the whole organization.

After a green light has been signaled from the higher-ups, the process of gathering all requirements then follows.

The following high-level steps are commonly found in FMEA processes. Think of this as a general checklist for starting with FMEA:

5 Tips for Successful FMEA Implementation

Tip #1: Tailor-Fit the Evaluation Criteria

The way FMEA is carried out can vary widely from each organization, and they have certain differences for a reason. Companies will have their own business strategies and therefore focus on different aspects of their operations. To reflect this in your FMEA process, you should be strategic in assigning weights and identifying categories in your decision criteria.

Tip #2: Be Consistent On Rating Scales Used Within the Organization

After identifying the criteria that best reflect your company’s objectives, it then helps to stick with a rating pattern. The consistency of your rating scales would be an effective way of aligning the organization toward common goals. Consistency allows you to seamlessly work within various groups and functions.

Tip #3: Identify Specific Risk Control Processes for Each Failure Mode

FMEA is essentially a risk assessment tool. For it to be an effective tool, it is not enough to identify the failure modes and corresponding effects. Specific processes and procedures need to be in place to eliminate, or at least reduce, the risks identified.

Tip #4: Engage the Team

A lot of the information that goes into the FMEA process relies on the day-to-day experience of the workforce. By engaging the right people, you can ensure the reliability of your data. It is important to recognize the value that comes with the collective experience of your team.

Tip #5: Use Tools You Already Have

You can only gather so much information with the limitations imposed by our human capacities. A superpower that you might not realize is the tools that are running 24/7 in the background.

CMMS programs that record equipment performance even when you’re not looking can provide you with data sets that you might have overlooked manually. Coupled with a more-than-capable workforce, these tools can maximize the potential you already have.

How To Avoid the Most Common FMEA Mistakes

Don’t Perform FMEA Too Late

Timing is key. FMEA processes should be performed as early as the conceptualization stages of a new design or concept. The idea behind this process is to identify risks before they even occur.

You want to be miles ahead of a potential breakdown. Starting FMEA while in the middle of your design implementation complicates what would have been simple changes to the initial concept.

Establish Clear Ownership

The required actions you identify are only as good as the actual execution. Without clear accountability within the team, it doesn’t really matter how many plans you lay out. Clear ownership of the required actions should be established as part of the process.

Have Continuous Commitment

FMEA is not a one-time process. The effectiveness of implementing FMEA relies on the continual execution of agreed actions. Moreover, the real success of FMEA is establishing a culture that is always seeking continuous improvement.

Create Proper Documentation

Without a disciplined documentation process, you risk starting from scratch even after recurring scenarios. Actions or significant events that have transpired should be properly documented as a way to assist future teams who will face similar situations.

Identify the Root Cause

Coming up with solutions is under the assumption that you have identified the root cause of a problem. Without the diligence to confirm the root cause, time and effort could easily be put to waste. What’s worse, you might be convinced about rectifying an issue, only to find out the hard way that the problem still persists.
